Unique Mixproof Process

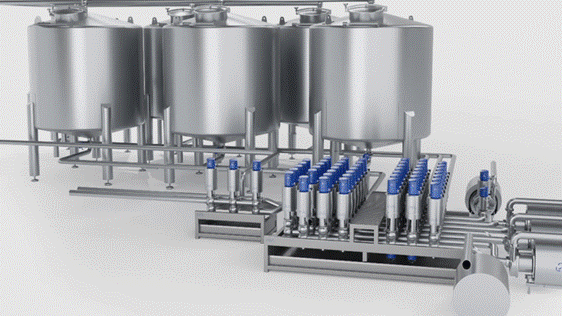

Safeguard process fluids at valve matrices and pipelines using the cost-effective Alfa Laval Unique Mixproof Process valve. This economical version of our premium double seat mixproof valves with seat lift eliminates the risk of cross-contamination. High cleanability, the ability to withstand pressure peaks, and fit-for-purpose components make this valve a great addition to dairy, food and beverage applications. It is available in various sizes to meet your hygienic processing requirements.

Unique Mixproof Process 640x360

Cost-effective double seat valve for fundamental mixproof functionality in hygienic applications

  • Get the product safety you need by eliminating the risk of cross-contamination and product loss while ensuring efficient cleaning
  • Enhance the reliability and flexibility of your process setup with proven valve technology tailored to your specific production needs
  • Minimize the risk of unplanned downtime while spending as little time and resources as possible on routine maintenance
  • Minimize your environmental impact with significant reductions in the use of water and CIP media and no spillage or product loss
  • Predefined and available in various sizes that meet your fundamental hygienic processing requirements

The Alfa Laval Unique Mixproof Process is a fit-for-purpose double seat valve with a seat lift function. Based on the proven Unique Mixproof and Unique Single seat valves, it is certified to FDA, 3A and other recognized standards.

The Unique Mixproof Process protects your products, even at high pressures. Its modular design makes it easy to adapt to various applications, capacity requirements and changing needs.

Service is simplified thanks to a maintenance-free actuator and proven seal technology with defined compression that prolongs the time between maintenance intervals. What’s more, enhance sustainability credentials by combining the valve with an Alfa Laval ThinkTop valve control unit for up to 90% savings in water, cleaning media and wastewater costs.


Protect your product

Get the product safety you need by eliminating the risk of cross-contamination and product loss, while ensuring efficient cleaning.

Boost your process

Enhance the reliability and flexibility of your process setup, with proven valve technology that matches the specific needs of your production.

Simplify your service

Minimize the risk of unplanned downtime, while spending as little time and resources as possible on routine maintenance.

Improve your sustainability

Limit your environmental impact, with greatly reduced water- and CIP media consumption and eliminated product loss.

.

How it works

The Alfa Laval Unique Mixproof Process valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The valve has two independent plugs and seals to separate the liquids; the space between the seals forms a leakage chamber at atmospheric pressure under every operating condition. Leakage rarely occurs, but  should it occur, the product flows into the leakage chamber and drains through the outlet at the bottom of the chamber for easy detection.

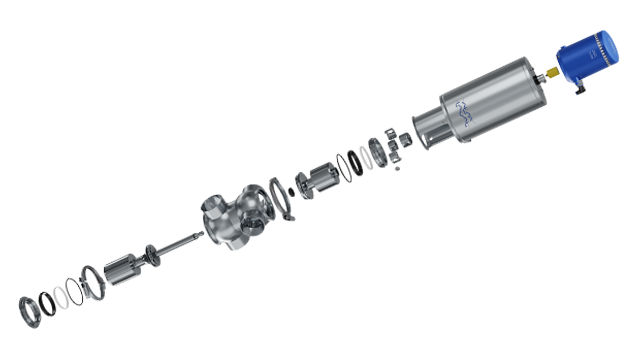

Exploded view_Unique Mixproof Process.png





When the valve is open, the leakage chamber is closed. The product then flows from one line to the other. The well-known radial design of the valve ensures that virtually no product spillage occurs during valve operation.

Icon 2 Proven performance_ 640x360_new.png

Designed to maximize uptime in production, keeping service at a minimum.

Icon 1 Proven Performance promo_640x360_new.png

Eliminate unnecessary product loss, thanks to spillage-free operation.

Icon 3 Proven performance promo 640x360.png

By adding the intelligence of Alfa Laval ThinkTop, you save up to 90% in water and cleaning media.
