LabStak M20
The Alfa Laval LabStak® M20 is a flexible plate-and-frame test unit for flat sheet membranes and membrane filtration processes. It is the ideal unit for research and developmental work, quality assurance as well as pilot plant process optimization and up-scaling. The unit can be equipped with all RO, NF, UF and MF flat sheet membranes from Alfa Laval. An optional M20-2.5” housing makes the unit easily convertible also for spiral wound testing
Handy and flexible
The Alfa Laval LabStak® M20 will be your partner of choice, if dependable and reproducible results are crucial to your work.
This flexible unit is designed for plate-and-frame operation. Two external stay bolts and a low end flange with full stroke permit quick and simple alteration of the module membrane area. Any area between 0.036 and 0.72 m² (divisible by 0.036) can easily be inserted without use of additional tool.
The Alfa Laval LabStak® M20 tolerates high operation temperature and pressure and it can be equipped with the full range of flat sheet membranes available from Alfa Laval. With the optional Alfa Laval Lab M20-2.5" housing it is possible to test also spiral membranes.
Option
For the Alfa Laval LabStak® M20 we offer a specially designed Alfa Laval Lab M20-2.5" housing which can be inserted between the module flanges.
This special housing makes the Alfa Laval LabStak® M20 easily convertible into a spiral membrane test unit for sanitary full-fit 2.5" spiral membranes. A unique combination of plate-and-frame and spiral wound technologies in one unit.
Alfa Laval TestUnit M20

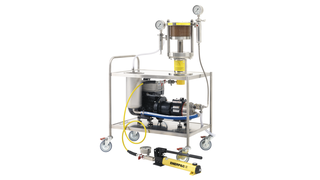

The Alfa Laval TestUnit M20 is a fully integrated system on an open and wheeled stainless steel table holding the Alfa Laval LabStak® M20 and other basic components.
Alfa Laval LabUnit M20
The Alfa Laval LabUnit M20 is a fully integrated system contained in a closed and wheeled cabinet holding the Alfa Laval LabStak® M20 and other basic components.
